Indoor Corner

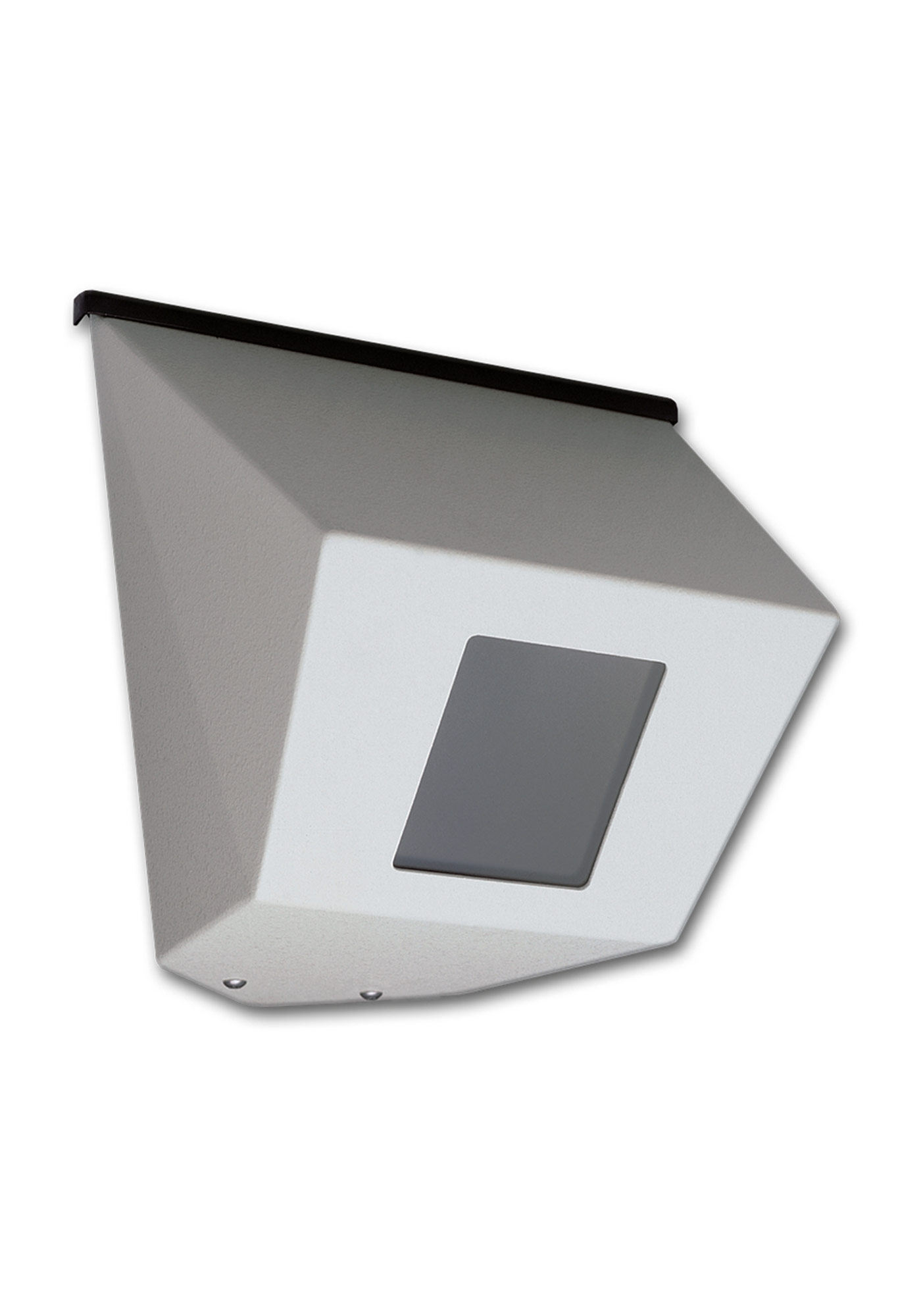

The AD1305 is an attractive, tamper resistant corner-mounted housing. Primarily designed for use in elevators, this compact unit is also perfect for stairwells, entrances, hallways, small offices, jail holding rooms, etc. Construction is of heavy gauge steel throughout with a 6.35 mm (0.25 in) thick replaceable Lexan window. All mounting bolts and cable entries are protected. The housing is secured from unauthorized entries by the use of two tamper resistant security screws. The housing permits maximum viewing coverage in confined areas for most low-profile cameras using wide angle lenses. The exposed surface of the unit has a beige baked enamel finish.
  • Maximum Camera/Lens Size: 203 mm (8.0 in)
  • Corner-mounted
  • Heavy-gauge steel construction
  • Tamper resistant
  • Distortion-free Lexan viewing window
  • 203 mm (8 in) maximum camera length
  • Perfect for use in elevators
  • Easy to install
  • Dimensions: 238.1 x 242.9 x 241.3 mm (9.37 x 9.6 x 9.5 in)
 Specifications
 Data Sheets
 Manuals
AD1305 - Camera housing, indoor, corner, 8" (20.3 cm) max. camera/lens length
