Indoor/Outdoor Universal Long

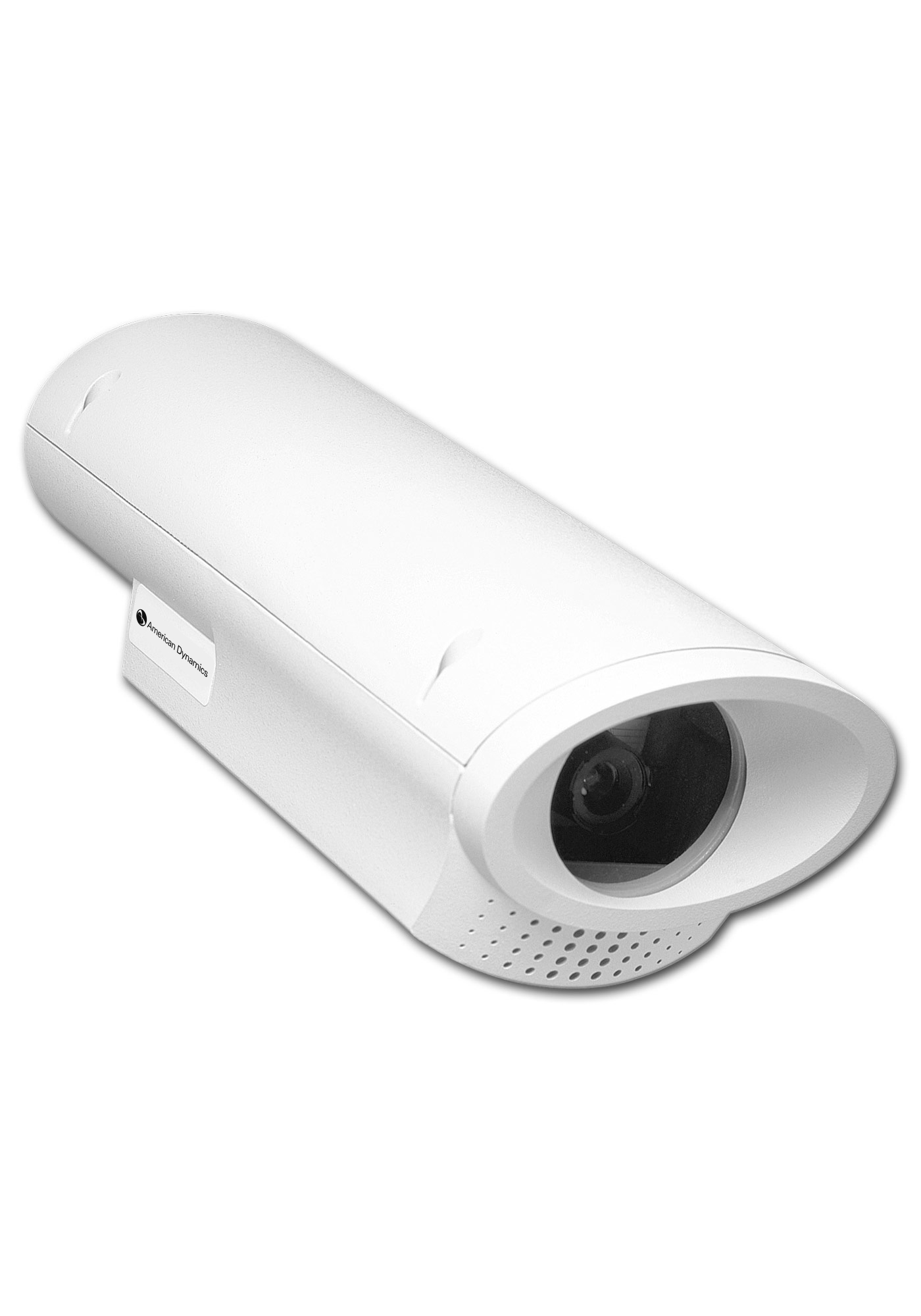

The AD1314 is a high quality environmental housing designed for most CCD cameras and zoom lenses. This polycarbonate housing provides excellent protection for the installed camera. The unique 180° opening of the cover provides full and easy access to the camera and lens for trouble-free installation and servicing. The camera platform can be securely attached in any position along the full length of the housing. This platform is constructed of a rigid non-conductive material which helps to eliminate common grounding problems. In cold weather climates, or where condensation problems exist, the optional blower and low current heater automatically regulates its output to provide heat in the housing and maintains a clear viewing window.
  • Maximum Camera/Lens Size: 304.8 mm (12 in)
  • Indoor/outdoor housing
  • Housing length accommodates most cameras and zoom lenses
  • Cover opens 180° for easy camera access
  • Tough, high-impact polymer construction
  • IP4/NEMA-3R protection
  • Automatic regulating heater available
  • 24 VAC blower, optional
  • 24 VAC heater, optiona
  • Tamper resistant
  • Electrically isolated camera platform
  • Multiple cable pass mounts available
  • Dimensions: 141 x 158 x 449 mm (5.56 x 6.2 x 17.68 in)
 Specifications
 Data Sheets
 Knowledge Base Article
AD1314 - Camera housing, in/outdoor, max cam/lens 12" (30.4 cm)
AD1314-B24 - Camera housing blower kit for AD1314 Series, 24 VAC
AD1314-H24 - Camera housing heater kit for AD1314 Series, 24 VAC
AD1314-HB24 - Camera housing, in/outdoor, max cam/lens 12" (30.4 cm), with 24V AC heater and blower
AD1314-SS - Camera housing sunshield for AD1314 Series
RTHOUTDR - 24V AC Housing kit, includes AD1314-HB24, wall mount and 120v AC Transformer Note Supply Voltage!
