Wide Dynamic Range

The Discover wide dynamic range (WDR) mini-dome uses over 504 lines of resolution and a pixel-by-pixel shutter speed that lets you see better in areas where both very bright and dark areas exist, such as an entranceway. This model also features up to a 2x digital zoom to get an even closer view of the action. Night-Saver mode improves performance in low light situations, automatically switching from color to monochrome as light dims, and reverting back to color once light is restored. The WDR mini-dome also includes a DVR-Saver mode which helps conserve valuable hard drive space, reducing the size of video files by up to 30% when used with an Intellex digital video management system.
  • High-impact, vandal resistant housing that retains shape even after forceful impact
  • Advanced pivoting axis provides greater viewing flexibility
  • Three auto iris lens options for better image quality and improved low-light performance
  • Multiple camera options, including WDR model with latest Pixim® technology*
  • Night-Saver mode for extreme low-light conditions (high resolution & WDR models only)
  • Easy installation with eight mounting options (surface, flush, pendant, wall, wall-pole, wall-exterior corner, inside corner, electrical box)*
 Specifications
 Data Sheets
 Knowledge Base Article

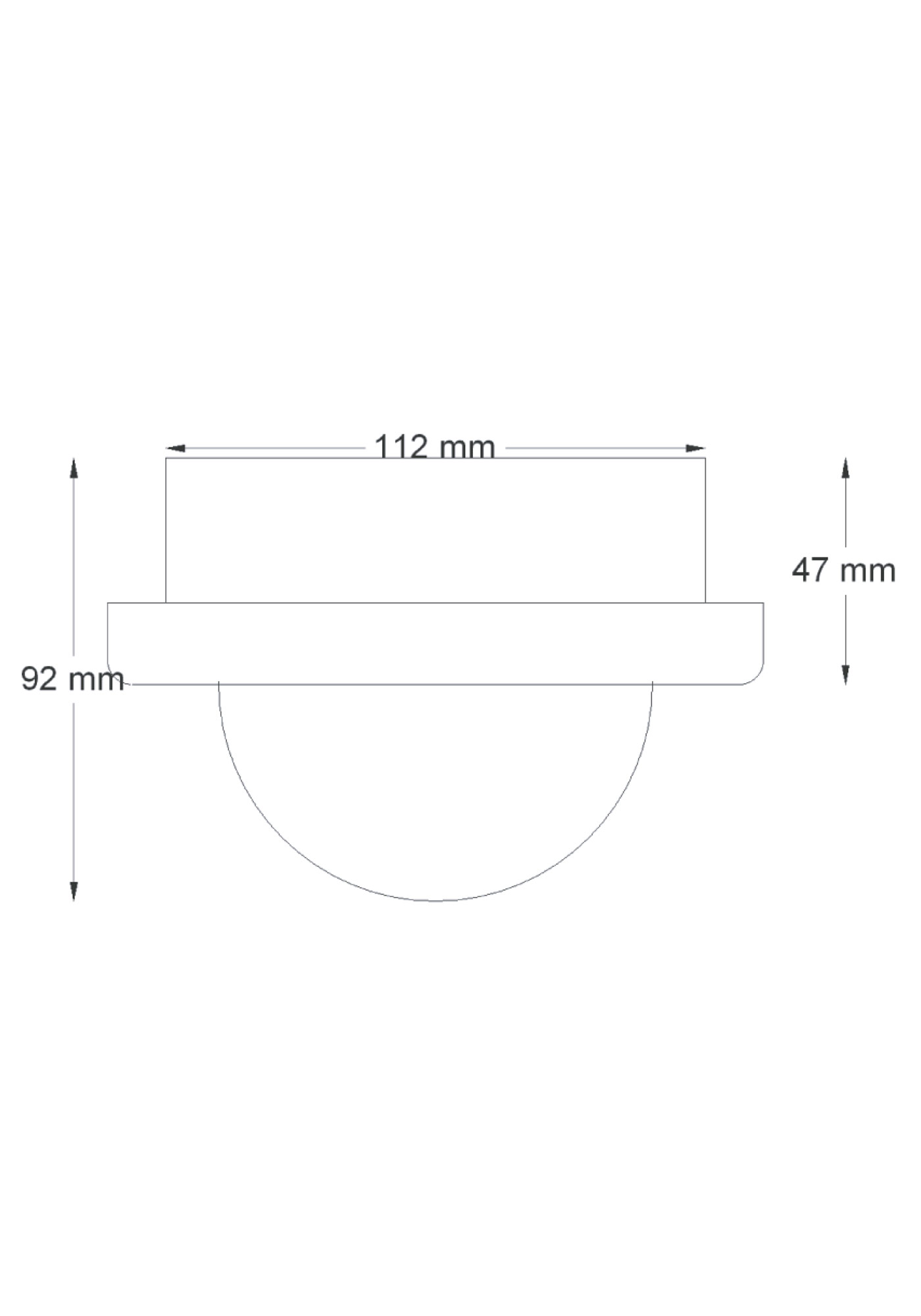

 Technical Drawings
ADCBW0309CU - WDR colour Discover mini-dome 1/3" 504TVL 0.95 lux @ f1.2. 3-axis gimbal. Switchable monochrome "night saver" mode for low light performance. Clear Bubble. Black body PAL/NTSC 12V DC/24V AC 3-9mm f1.6 auto-iris lens + 2x digital zoom
ADCBW0309TU - WDR colour Discover mini-dome 1/3" 504TVL 0.95 lux @ f1.2. 3-axis gimbal. Switchable monochrome "night saver" mode for low light performance. Tinted Bubble. Black body PAL/NTSC 12V DC/24V AC 3.8-9.5mm f1.2 auto-iris lens + 2x digital zoom
ADCBW0922CU - WDR colour Discover mini-dome 1/3" 504TVL 0.95 lux @ f1.2. 3-axis gimbal. Switchable monochrome "night saver" mode for low light performance. Clear Bubble. Black body PAL/NTSC 12V DC/24V AC 9-22mm f1.8 auto-iris lens + 2x digital zoom
ADCBW0922TU - WDR colour Discover mini-dome 1/3" 504TVL 0.95 lux @ f1.2. 3-axis gimbal. Switchable monochrome "night saver" mode for low light performance. Tinted Bubble. Black body PAL/NTSC 12V DC/24V AC 9-22mm f1.8 auto-iris lens + 2x digital zoom
ADCBW2606CU - WDR colour Discover mini-dome 1/3" 504TVL 0.95 lux @ f1.2. 3-axis gimbal. Switchable monochrome "night saver" mode for low light performance. Clear Bubble. Black body PAL/NTSC 12V DC/24V AC 2.6-6mm f1.6 auto-iris lens + 2x digital zoom
ADCBW2606TU - WDR colour Discover mini-dome 1/3" 504TVL 0.95 lux @ f1.2. 3-axis gimbal. Switchable monochrome "night saver" mode for low light performance. Tinted Bubble. Black body PAL/NTSC 12V DC/24V AC 2.6-6mm f1.6 auto-iris lens + 2x digital zoom
ADCDW0309CU - WDR colour Discover mini-dome 1/3" 504TVL 0.95 lux @ f1.2. 3-axis gimbal. Switchable monochrome "night saver" mode for low light performance. Clear Bubble. White body PAL/NTSC 12V DC/24V AC 3-9mm f1.6 auto-iris lens + 2x digital zoom
ADCDW0309TU - WDR colour Discover mini-dome 1/3" 504TVL 0.95 lux @ f1.2. 3-axis gimbal. Switchable monochrome "night saver" mode for low light performance. Tinted Bubble. White body PAL/NTSC 12V DC/24V AC 3.8-9.5mm f1.2 auto-iris lens + 2x digital zoom
ADCDW2606CU - WDR colour Discover mini-dome 1/3" 504TVL 0.95 lux @ f1.2. 3-axis gimbal. Switchable monochrome "night saver" mode for low light performance. Clear Bubble. White body PAL/NTSC 12V DC/24V AC 2.6-6mm f1.6 auto-iris lens + 2x digital zoom
ADCDW2606TU - WDR colour Discover mini-dome 1/3" 504TVL 0.95 lux @ f1.2. 3-axis gimbal. Switchable monochrome "night saver" mode for low light performance. Tinted Bubble. White body PAL/NTSC 12V DC/24V AC 2.6-6mm f1.6 auto-iris lens + 2x digital zoom
