Intellex IP

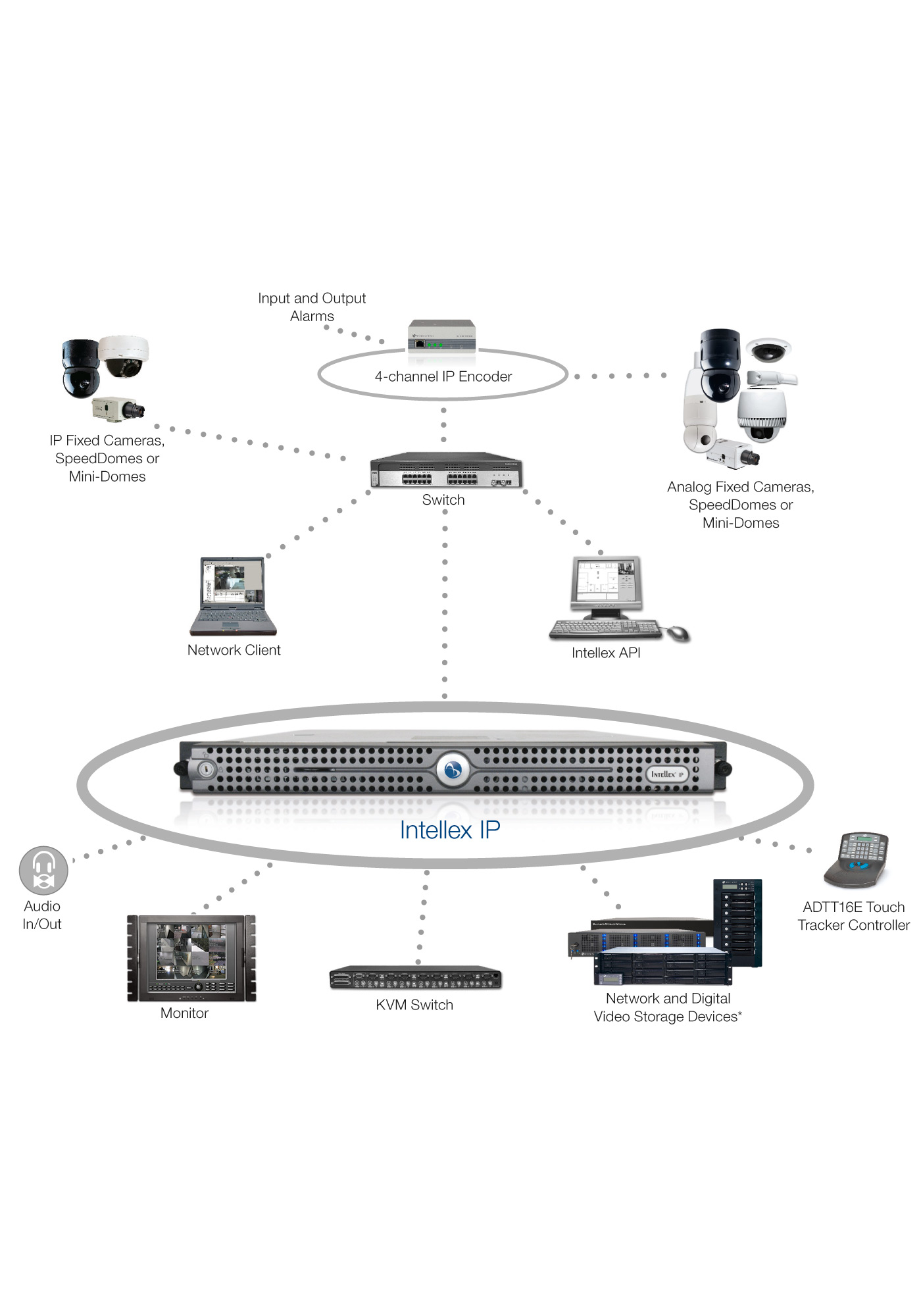

Intellex IP supports IP cameras with performance of up to 480 ips at 1CIF and 240 ips at 4CIF. Intellex IP integrates seamlessly with existing Intellex systems and analog and digital cameras to leverage prior investments. Its scalable 1U form factor complements the design of large systems. The ability to use existing IT network cable further reduces total cost of ownership.  For a list of IP Edge devices that are compatible with the Intellex IP, please refer to the IP Camera Compatibility Application note in the Documents tab of the Intellex IP product page.
  • Support for IP cameras and the 4-channel IP video encoders which allows customers to plug analog outputs into an American Dynamics surveillance environment to capture, display, store, retrieve and analyze security data over an IT network connection.
  • Capture up to 4 CIF resolution
  • Dual embedded Gigabit NIC
  • Integrated recording and storage in a 1U rack mount chassis
  • Keyboard, video, monitor (KVM) port on front
  • Windows XP operating system
  • 1.0 TB or 2.0 TB SATA hard drive configurations
  • 16 video inputs
  • Simultaneously record, play back, view remotely, conduct a search and more
  • Supports up to 20 simultaneous client connections
Access Control Integration:
View live/recorded video, PTZ control, Alarm management, Video display options, Remote programming, and more...

Integration with Kantech
Control Intellex right from the EntraPass access control system for the ultimate balance between power and affordability.
  • Monitor video in real-time and play back video clips
  • Automatically call cameras directly from a floor plan
  • Simultaneously operate up to 16 cameras
  • Automatically display associated live video when an alarm is generated in the system
  • EntraPass Video Vault lets you automatically archive and password-protect video clips
  • Easy video clip organization using pre-selected file names or thumbnails

Integration with Software House
Control Intellex right from Software House security and event management systems for impenetrable security at the enterprise level.
  • View live/recorded video from multiple cameras represented by camera/dome icons on maps with pop-up windows
  • View recorded video clips from event tiles on monitoring station
  • Operator and action triggered support for PTZ presets and patterns based upon event, alarm, or video tour
  • Automatically activate events based on alarms received from Intellex
  • Supports operator restrictions based on cameras and video operations
  • Increase security and save time with C•CURE NetVue Video Tours and Video Views for C•CURE 800/8000
 Specifications
 Application Notes
 Data Sheets
 FAQs
 Knowledge Base Article
 Manuals
 Presentations
 Regulatory Information
 Release Notes
 Technical Bulletins
 Technical Drawings
 White Papers
ADDIPA100 - Intellex IP Premier v5, 16 IP channel, 1U rack mount, PAL/NTSC. 1TB (1x1TB HDD)
ADDIPA200 - Intellex IP Premier v5, 16 IP channel, 1U rack mount, PAL/NTSC. 2TB(1x2TB HDD)
